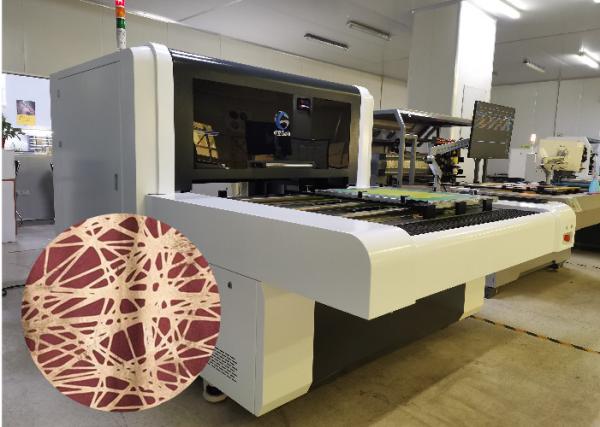

Computer To Screen Exposing Machine 2540DPI 1200mm*1300mm Automatic
Adjusting
Computer-to-screen (CTS)
Computer-to-screen" (CTS) and "direct-to-screen" (DTS) are two
terms to describe the same concept in screen printing. People often
use the two labels interchangeably, but for our purposes we'll call
it computer-to-screen or CTS.
Computer to screen (CTS) imaging & exposure system. CTS greatly
reduces the time and effort required to prepare images for screen
printing. The screen in the screen frame has been pictured with a
water-oil dual-use photosensitive emulsion. When it passes through
the exposure machine, the advanced DMD digital imaging technology
makes it form sharp square dots with clear definition, thereby
quickly generating opaque images. After the exposure is completed,
the stencil can be washed, and the digital image can be clearly
displayed on the screen.
What is automatic expanding and shrinking?
In view of the special effect of printing paper with screen,
traditional films need to be edited for printing down due to
deformation after printing paper, resulting in manual work waste
and precision loss. CTS300-AI uses CCD industrial camera to capture
paper data, calculate paper deformation data through powerful
computing ability while automatically expand and shrink the graph
according to the paper deformation data, so that the graph on the
screen accurately aligns the deformed paper, thereby eliminating
the distress of editing film.
Specification / Model | CTS300 |
Max screen size ( mm ) | 1200x1300 |
Min screen size ( mm ) | 400x400 |
Max exposure size ( mm ) | 1100x1250 |
Screen frame thickness (bespoke service is available) | 25-45mm |
Imaging System | DMD DLP Technology |
Emulsion thickness (EOM) | Solvent resistant emulsion 3μm-150μm, water resistant emulsion 3μm-
350μm |
Exposure time | 120-240s/ ㎡, #350 yellow mesh |
Resolution | 2540dpi (Optional) |
Raster | 133LPI |
Focus system | Fixed focusing |
File format | 1_bit tiff etc. |
Laser type | UV laser, wavelength 405±5nm |
Laser power | 20W/25W(Optional) |
Equipment size (mm) | 3270x1900x1600 |
Equipment net weight | 2600KG |
Conditions | Yellow light room with cleanliness Class 10000, temperature 22±2°C, 40-70% relative humidity (No condensation) |
Power | Single phase 220v, 50/60HZ, 4KW, gas 1L/min |
*Specifications subject to change without notice
CTS Advantages
High Precision:
Resolutions 1270dpi or 2540dpi, with raster 133lpi/dpi (halftones
printing)
High precision optical engine:
Suitable lenses can be configured according to customer
requirements, 1.95x (higher precision), 2.052x, 3.1x (higher
capacity).
405 nanometer optical device:
GIS has independently developed 405 nm coupling laser and laser
imaging system, which improves the laser utilization from the
traditional 30% to 50%
Independently developed software system:
Independently developed exposure system, which can add reasonable
functions according to customer requiremen
